Compumatic XLS Face Enroll

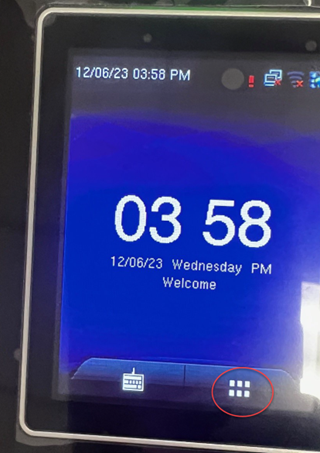

For users with manager security permissions, tap the Screen Icon on the screen (key on the right with 6 dots).

After logging in to the Main Menu, you will want to navigate to the User Mgt section to Enroll New Users

or Enroll a User's Face.

Enrolling an Employee’s Biometric Validation

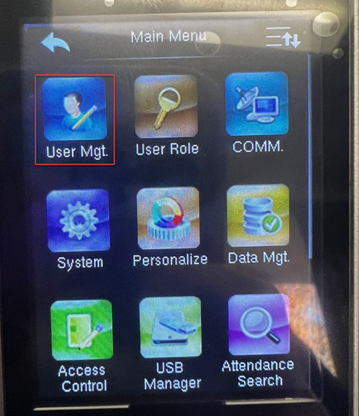

1.  Tap the User Mgt. icon

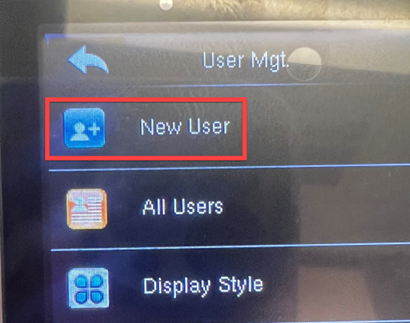

2.  To add a New User, select New User.

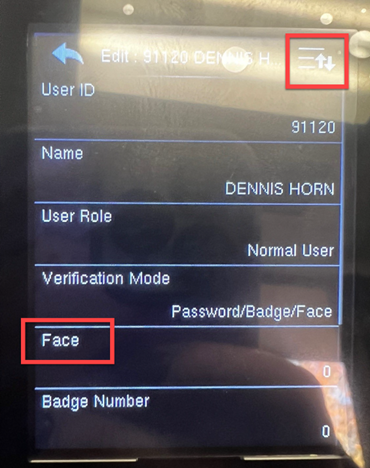

3.   Inside the employee Edit screen, you have options to add their User ID, Name, User Role (Normal user indicates they do not have manager access), Verification Mode (Password/Badge/Face is enabled), face and Badge Number.

The User ID is the number that corresponds to Badge ID in the CPS payroll software.

After you enter all of the employee information, you want to use the arrow keys to navigate to Face.

4.      Once you select Face, follow the on-screen prompts and instructions to enroll the users face.  Once completed, it will say success.

Enroll the employee by having them position their face in front of the camera. The employee should look at the camera while enrolling the way that they would naturally look at the display; their chin should not be tilted.

Tilting the chin up or down may achieve a good score, but future authentications may fail if the chin is tilted differently.

The employee should stand within 30 inches (76 centimeters) of the clock. Have the employee move closer if a good score cannot be achieved, or the rectangle is red instead of green.

After a user is successfully enrolled, all they have to do is stand in front of the clock and it will read their face to record their IN/OUT punches.
