Compumatic XLS Bio v2 User Guide

Admin - Navigating the Time Clock

To access the menu, select M/OK.  (use the UP/DOWN arrows to navigate)

A screen prompt will appear that says Please Verify.

Type in the admin user ID.

---

Adding Users

At the time clock select M/OK > User Mgt > M/OK

Select New User

The User ID is the number that corresponds to Badge ID in the CPS system.

0. Example: User 1 would equal Badge ID 1 in the system

Enter the Employees’ Name in the Name Field (this is optional)

To add a fingerprint select “Fingerprint” and follow the prompts.

Go to “Access Control Role” and then select “Verification Mode” to change how the employee clocks in e.g. Fingerprint Only, User ID only, Fingerprint AND User ID, etc.

*IMPORTANT* Go to password and enter in the employees user ID so the employee will save to the time clock.

Press ESC to navigate back to the main menu.

Note: The user ID on the time clock must match the simple badge ID# in the CPS payroll system employee profile

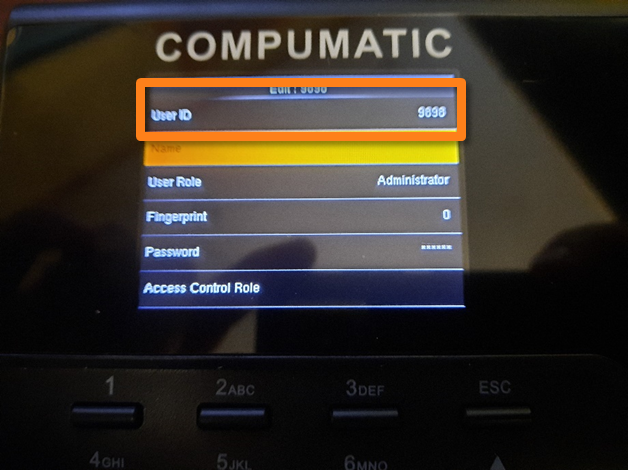

TIMECLOCK VIEW:

PAYROLL SYSTEM VIEW:

---

Networking

Press M/OK navigate to the COMM. Option.

Depending on the clocks connectivity you’ll either want to select Ethernet, or Wireless Network

If you are using WiFi and not a network cable in the Wireless Network setting you’ll want to make sure WiFi is on and find the network in the list.

---

Clocking In/Out

The employee will type in their User ID# or scan their finger. If it is done correctly the clock will prompt with a successfully verified message.

The system will assume In/Out based on their last punch.
